Desktop Fiber Laser Marking Machine 20W/30W/50W/60W/100W
Product Features
- Support for DataMatrix, QR codes, and other 2D barcodes
- Multilingual interface with intuitive operation
- Easy import of DXF vector files and common image formats (BMP, JPG, JPEG, GIF)
- Adjustable laser parameters including speed and power
- Flexible text and graphics tools, including curved text and basic shapes
- Dynamic data marking such as date, serial numbers, and batch codes
- Object scaling, rotation, grouping, and template-based marking
- Quick parameter testing and automation support, including external axis and shutter control
- Real-time graphic preview for accurate positioning and marking verification
Specifications
| Laser Type | Fiber Laser | Marking Speed | 3000–7000 mm/s |
|---|---|---|---|
| Marking Depth | 0.5–2 mm | Configuration | Stand-Alone |
| Control System Brand | EZCAD | Cooling System | Air Cooling |
| Mode of Operation | Continuous Wave | Key Selling Points | Competitive Price |
| Feature | High Accuracy | Graphic Formats Supported | AI, PLT, JPG, JPEG, DXF, BMP, SVG, DST, CDR, DWG, TIF, LAS |
| CNC | Yes | Condition | New |
| Warranty | 1 Year | Working Accuracy | ±0.01 mm |
| Place of Origin | Henan, China | Brand Name | Dowin |
| Control Software | EZCAD | Weight | 24 kg |
| Product Name | Fiber Laser Marking Engraving Machine | Applicable Materials | Metal & Non-metal Materials |
| Laser Power | 20W / 30W / 50W / 60W / 100W | Laser Source Brand | JPT / MAX / RAYCUS |
| Standard Marking Area | 110 × 110 mm | Working Speed | 7000 mm/s |
| Power Supply | AC220V ±5% 50/60HZ / AC110V 60HZ | Machine Size | 37 × 37 × 43 cm |
| Laser Wavelength | 1064 nm | ||
Product Gallery
Product Video
Advantages of the Dowin Fiber Laser Marking Machine
- High-Precision Marking Performance
Equipped with a stable fiber laser source, the machine delivers fine, clear, and permanent markings, suitable for detailed text, logos, barcodes, and graphics. - Compact and Integrated Design
The all-in-one structure saves workspace and keeps the setup clean and organized, making it ideal for small workshops, factories, and laboratories. - Stable and Reliable Operation
Built with high-quality components, the system supports long-term continuous operation with consistent marking quality and minimal maintenance. - Fast Marking Speed and High Efficiency
High-speed galvo scanning significantly improves production efficiency, especially for batch processing and industrial applications. - Wide Material Compatibility
Suitable for marking various metals and some non-metal materials, including stainless steel, aluminum, brass, coated metals, and plastics. - User-Friendly Control System
Intuitive software interface supports multiple file formats and variable data marking, enabling quick setup and easy operation. - Low Operating Cost and Eco-Friendly
Non-contact laser marking requires no consumables such as ink or chemicals, reducing operating costs while remaining environmentally friendly. - Flexible Configuration Options
Supports optional rotary devices, different marking areas, and power selections to meet diverse application requirements.

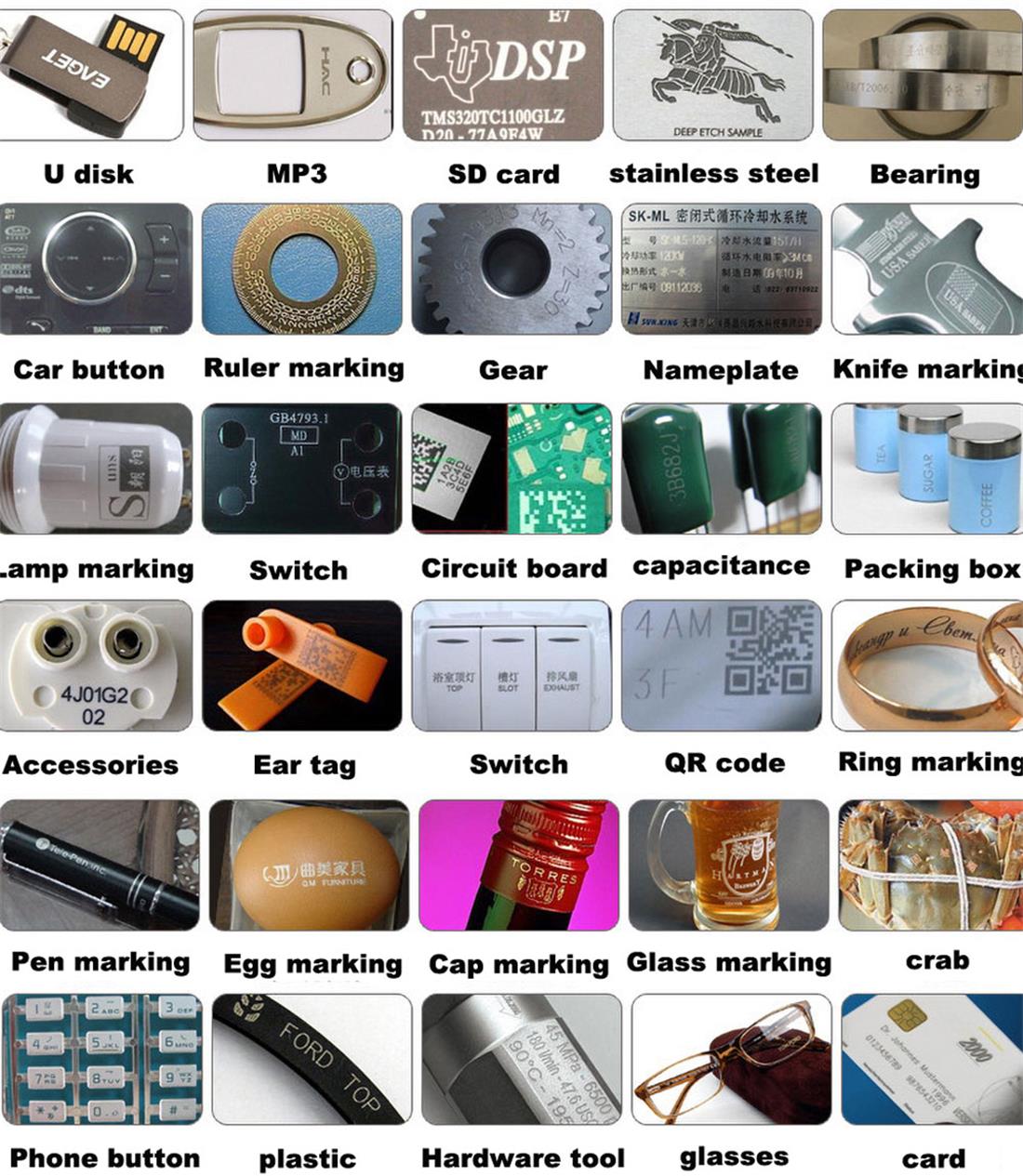

Applications by Industry
- Metal Processing Industry
Used for permanent marking on stainless steel, aluminum, brass, copper, and alloy parts. Typical applications include serial numbers, logos, QR codes, barcodes, and technical information on metal components, plates, and tools. - Electronics & Electrical Industry
Suitable for high-precision marking on electronic components, connectors, metal housings, control panels, and switches. Ensures clear identification, traceability, and branding without damaging sensitive parts. - Automotive & Machinery Industry
Widely applied for marking engine parts, bearings, gears, shafts, and mechanical components. Supports VIN codes, part numbers, and traceability markings required in automated production lines. - Hardware & Tools Industry
Ideal for marking hand tools, molds, fasteners, and industrial hardware with model numbers, sizes, logos, and anti-counterfeiting marks that resist wear and corrosion. - Jewelry, Gifts & Custom Products
Used for fine engraving on metal jewelry, pendants, souvenirs, trophies, and personalized gifts, delivering detailed and decorative marking results. - Nameplates & Industrial Labels
Applied to metal nameplates, tags, labels, and panels for long-term identification in harsh environments, maintaining readability under heat, abrasion, and chemical exposure.
Manufacturer & Global Supplier
Dowin is the professional manufacturer and supplier of this fiber laser marking machine, with extensive experience in laser equipment design, production, and export. We serve customers worldwide by providing reliable machines, stable quality, and professional technical support for different markets and industries.
Dowin welcomes global distributors, agents, and end users to cooperate with us. Whether you are looking for a long-term partnership or direct purchase, our team is ready to support your business with competitive solutions and fast response.
For inquiries, pricing, or agency cooperation, please contact us or directly via WhatsApp.
