In the realm of laser marking, the choice of wavelength is a critical decision that can significantly impact the quality, efficiency, and versatility of the marking process. Infrared (IR), green, and ultraviolet (UV) lasers are three of the most commonly used types of lasers in industrial marking applications, each with its own unique properties and advantages. As a physicist with years of experience in laser technology, I have had the opportunity to work with all three types of lasers and gain a deep understanding of their strengths and limitations. In this article, I will provide a comprehensive guide to wavelength selection for laser marking, comparing the properties and performance of IR, green, and UV lasers, and offering my personal insights and recommendations based on my experience.
Contents
The Physics of Laser Wavelengths
Before delving into the specifics of each type of laser, it’s important to understand the basic physics of laser wavelengths. Lasers emit light at a specific wavelength, which is determined by the energy transition of the atoms or molecules in the laser medium. The wavelength of a laser is inversely proportional to its energy, meaning that shorter wavelengths have higher energy than longer wavelengths. This energy difference has a significant impact on how the laser interacts with different materials, as different materials have different absorption spectra that determine how they absorb and respond to light of different wavelengths.
Infrared Lasers (1064 nm)
Infrared lasers are the most widely used type of laser in industrial marking applications, primarily due to their high power output and relatively low cost. IR lasers emit light at a wavelength of 1064 nm, which is in the near-infrared region of the electromagnetic spectrum. This wavelength is well-suited for marking a wide range of materials, including metals, plastics, and ceramics, as most materials have a relatively high absorption coefficient at this wavelength.
One of the key advantages of IR lasers is their ability to deliver high power output, which allows for fast and efficient marking. IR lasers can typically achieve marking speeds of several meters per second, making them ideal for high-volume production environments. Additionally, IR lasers are relatively easy to maintain and operate, as they do not require complex cooling systems or specialized optics.
However, IR lasers also have some limitations. One of the main drawbacks of IR lasers is their relatively low precision, as the longer wavelength can result in a larger spot size and less focused beam. This can make it difficult to achieve high-resolution marking on small or intricate parts. Additionally, IR lasers can cause thermal damage to some materials, particularly plastics and delicate electronics, due to the high heat generated by the laser beam.
Green Lasers (532 nm)
Green lasers emit light at a wavelength of 532 nm, which is in the green region of the visible spectrum. Green lasers are known for their high precision and excellent beam quality, making them ideal for applications that require high-resolution marking, such as marking on small parts, medical devices, and electronics.
The shorter wavelength of green lasers results in a smaller spot size and a more focused beam, which allows for extremely precise marking with high contrast and sharp edges. Green lasers also have a lower thermal impact on materials compared to IR lasers, as the higher energy of the shorter wavelength is absorbed more efficiently by the material, resulting in less heat generation. This makes green lasers ideal for marking on heat-sensitive materials, such as plastics and delicate electronics.
However, green lasers also have some limitations. One of the main drawbacks of green lasers is their relatively low power output compared to IR lasers. This can make them less suitable for high-volume production environments where fast marking speeds are required. Additionally, green lasers are typically more expensive than IR lasers, due to the more complex technology required to generate the shorter wavelength.

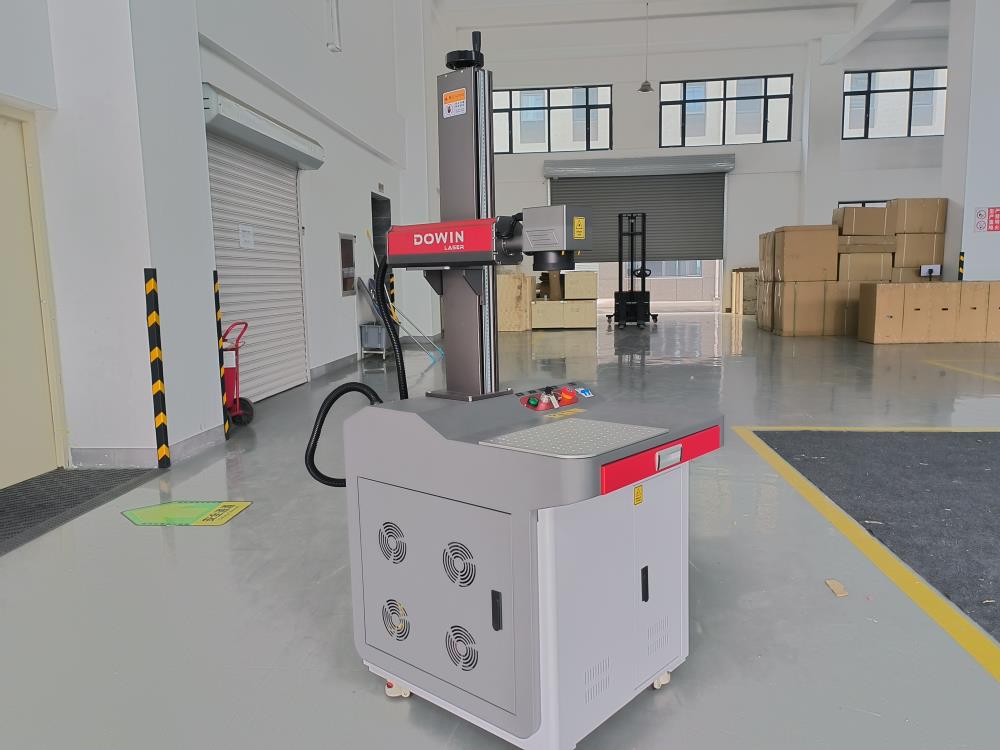

Ultraviolet Lasers (355 nm)
Ultraviolet lasers emit light at a wavelength of 355 nm, which is in the ultraviolet region of the electromagnetic spectrum. UV lasers are known for their extremely high precision and ability to mark on a wide range of materials, including those that are difficult to mark with other types of lasers, such as glass, silicon, and certain plastics.
The very short wavelength of UV lasers results in an extremely small spot size and a highly focused beam, which allows for ultra-precise marking with micron-level resolution. UV lasers also have a unique ability to “cold mark” materials, meaning that they can mark the surface of the material without causing significant thermal damage. This is because the high energy of the UV photons breaks the chemical bonds in the material, rather than heating it, resulting in a clean and precise mark.
However, UV lasers also have some limitations. One of the main drawbacks of UV lasers is their relatively low power output compared to IR and green lasers. This can make them less suitable for high-volume production environments where fast marking speeds are required. Additionally, UV lasers are typically the most expensive type of laser, due to the complex technology required to generate the short wavelength and the need for specialized optics and cooling systems.
Comparing the Performance of IR, Green, and UV Lasers
To help you make an informed decision about which type of laser is best suited for your marking application, let’s compare the performance of IR, green, and UV lasers in terms of several key factors, including marking speed, precision, material compatibility, and cost.
Marking Speed
In terms of marking speed, IR lasers are the clear winner, as they can typically achieve marking speeds of several meters per second. Green lasers are slightly slower, with marking speeds typically ranging from 0.5 to 2 meters per second, while UV lasers are the slowest, with marking speeds typically ranging from 0.1 to 0.5 meters per second. However, it’s important to note that marking speed can vary depending on a number of factors, including the power output of the laser, the type of material being marked, and the desired marking quality.
Precision
When it comes to precision, UV lasers are the best choice, as they can achieve micron-level resolution with extremely sharp edges and high contrast. Green lasers are also very precise, with a spot size typically ranging from 10 to 20 microns, while IR lasers have a relatively larger spot size, typically ranging from 20 to 50 microns. However, it’s important to note that the precision of a laser also depends on the quality of the optics and the stability of the laser system.
Material Compatibility
All three types of lasers are compatible with a wide range of materials, but each type has its own strengths and weaknesses when it comes to marking specific materials. IR lasers are well-suited for marking metals, plastics, and ceramics, as most materials have a relatively high absorption coefficient at 1064 nm. Green lasers are ideal for marking on heat-sensitive materials, such as plastics and delicate electronics, as they have a lower thermal impact compared to IR lasers. UV lasers are the most versatile, as they can mark on a wide range of materials, including glass, silicon, and certain plastics that are difficult to mark with other types of lasers.
Cost
In terms of cost, IR lasers are the most affordable, with prices typically ranging from a few thousand dollars to tens of thousands of dollars, depending on the power output and features of the laser. Green lasers are slightly more expensive, with prices typically ranging from $10,000 to $50,000, while UV lasers are the most expensive, with prices typically ranging from $50,000 to $200,000 or more. However, it’s important to consider the total cost of ownership when evaluating the cost of a laser, including factors such as maintenance, consumables, and downtime.
My Personal Insights and Recommendations
Based on my experience working with all three types of lasers, I have developed some personal insights and recommendations that I believe can help you make the right choice for your marking application.
When to Choose an IR Laser
IR lasers are a good choice for most general-purpose marking applications, particularly those that require high marking speeds and relatively low precision. IR lasers are ideal for marking on metals, plastics, and ceramics, and are well-suited for high-volume production environments where cost and efficiency are the primary concerns. However, if you need to achieve high-resolution marking on small or intricate parts, or if you are marking on heat-sensitive materials, you may want to consider a green or UV laser instead.
When to Choose a Green Laser
Green lasers are an excellent choice for applications that require high precision and minimal thermal damage. Green lasers are ideal for marking on small parts, medical devices, and electronics, as they can achieve extremely precise marks with high contrast and sharp edges. Additionally, green lasers are a good choice for marking on heat-sensitive materials, as they have a lower thermal impact compared to IR lasers. However, green lasers are typically more expensive than IR lasers, and may not be suitable for high-volume production environments where fast marking speeds are required.
When to Choose a UV Laser
UV lasers are the best choice for applications that require the highest level of precision and the ability to mark on a wide range of materials, including those that are difficult to mark with other types of lasers. UV lasers are ideal for marking on glass, silicon, and certain plastics, and are well-suited for applications such as micro-marking, engraving, and surface modification. However, UV lasers are the most expensive type of laser, and may not be suitable for all applications due to their relatively low power output and slow marking speeds.
The Future of Laser Marking
Looking ahead, I believe that the future of laser marking lies in the development of new laser technologies that combine the best features of IR, green, and UV lasers. For example, there is currently a lot of research being done on mid-infrared lasers, which emit light at wavelengths between 2 and 10 microns. Mid-infrared lasers have the potential to offer the high power output of IR lasers with the precision and material compatibility of UV lasers, making them ideal for a wide range of marking applications.
Additionally, I believe that the integration of laser marking with other technologies, such as robotics and machine vision, will become increasingly common in the future. This will allow for more automated and flexible marking systems that can adapt to changing production requirements and achieve even higher levels of precision and efficiency.
Conclusion
In conclusion, the choice of laser wavelength for marking applications depends on a number of factors, including the type of material being marked, the desired marking quality and speed, and the budget available. IR lasers are the most widely used type of laser in industrial marking applications, due to their high power output and relatively low cost, but they may not be suitable for all applications. Green lasers offer high precision and minimal thermal damage, making them ideal for marking on small parts and heat-sensitive materials, while UV lasers are the most versatile, with the ability to mark on a wide range of materials, including those that are difficult to mark with other types of lasers.
As a physicist with years of experience in laser technology, I recommend carefully evaluating your specific marking requirements and considering the strengths and limitations of each type of laser before making a decision. By choosing the right laser for your application, you can achieve high-quality, efficient, and cost-effective marking results that meet your production needs.
